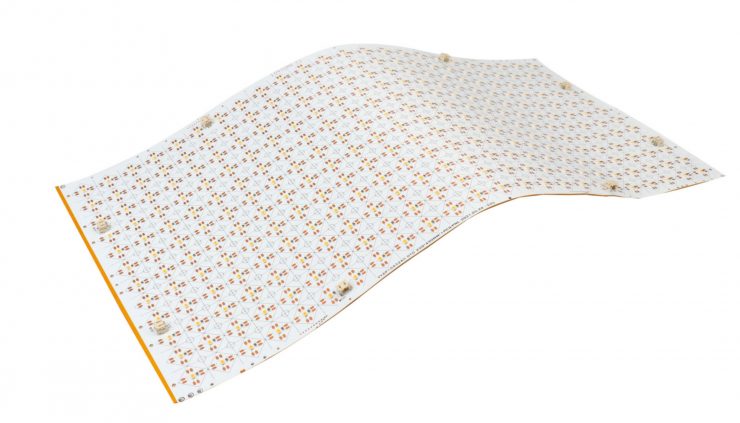

Introducing our Professional LED Light Sheets (B420 & B840 CCT) — a flexible sheet of LED lights designed to provide uniform illumination for large spaces.
These light sheets bring high-output lighting to applications like retail displays, architectural features, and signage with ease and efficiency.
In the past, achieving this level of coverage meant using multiple LED strips to light an entire surface.
Now, with LED light sheets, a single sheet can deliver seamless, even lighting across a large area, making installation simpler and more effective.
With exceptional flexibility, the sheets are easy to cut at 16.77mmX16.77 intervals and can be trimmed vertically, diagonally, or horizontally to fit any project requirements. Each sheet contains 420 to 840 LEDs, providing bright, even lighting without visible hotspots, ensuring flawless results in every installation.
Available in two options: B420 static white Light Sheet, offered in 3000K and 6500K, and the B840 CCT, with an adjustable range of 2700K to 6500K.
Installation is straight forward with 3M adhesive backing, allowing secure mounting on various surfaces, including uneven spaces.
Vertical, horizontal, and diagonal cuts
Both the these two light sheets offer 16.77mm cut points, allowing precise cuts in vertical, horizontal, or diagonal directions. This flexibility ensures seamless integration into complex installations or custom designs.
420 – 840 LEDs Per Sheet
The B840-CCT features 840 LEDs per sheet, ideal for applications requiring uniform, high-intensity lighting. The B420, with 420 LEDs per sheet, provides a cost-effective yet bright solution. Both offer up to 1780 lumens per metre for powerful illumination.
5 Year Warranty
Our LED light sheets are built to last, with a 5-year warranty and a 50,000-hour lifespan, providing a reliable, fit-and-forget solution.
Available In Single Colour & CCT
The B420 Static white is available in fixed colour temperatures of 3000K (warm white) and 6500K (cool white), while the B840-CCT offers tunable white options from 2700K to 6500K for adaptable lighting in various environments.
Both models come in packs of 4 light sheets, making them convenient for installations requiring consistent coverage across multiple areas.
What Are LED Light Sheets?
Light sheets are an innovative lighting solution that provides uniform illumination across large surfaces quickly and efficiently.
Unlike traditional LED strips, which require multiple runs to cover expansive areas, light sheets deliver consistent brightness in ultra-thin, flexible panels.
With high LED density, they can fit into shallow spaces while offering spot-free, even lighting across large areas.
Their design allows them to be customised for unique installations, including curved and uneven surfaces, making them ideal for seamless lighting in a wide range of applications.
They are perfect for both commercial applications, such as retail displays, signage, and office environments, and residential uses, including under-cabinet lighting, home offices, and feature walls, where space is limited but high-quality, consistent lighting is essential.
Our Product Range
The b420 light sheet features 420 LEDs per sheet, delivering up to 3000lm lumens per sheet. Available in fixed colour temperatures of 3000K (warm white) and 6500K (cool white), it’s ideal for architectural details, retail lighting, and display cases.
With 16.77mm cut points, it can be easily trimmed to fit custom spaces without compromising performance.
B840-CCT Light Sheet
The B840-CCT light sheet offers tunable white temperatures from 2700K to 6500K, with 840 LEDs per sheet for uniform light distribution, even in shallow enclosures.
With 16.77mm cut points, it can be trimmed to fit the contours of any space, making it ideal for luxury retail and architectural projects that require precise, adaptable lighting. Its tunable range also supports human-centered lighting, allowing the light’s intensity and colour temperature to adjust with the time of day.
This flexibility helps align with natural circadian rhythms, promoting comfort and well-being by mimicking natural light conditions throughout the day and night.
How To Use Our LED Light Sheets
Our Light Sheets are simple to use and easy to install, making them suitable for any project.
- Prepare The Surface – Ensure the surface is clean and dry before installation. For optimal performance and heat dissipation, mount on heat-conductive surfaces like Aluminium Composite Material (ACM) panels. Avoid mounting directly on MDF or other heat-retentive materials, as they can reduce the lifespan and efficiency of the LEDs.
- Measure And Cut – Light sheets can be cut at 16.77mm intervals to fit specific space requirements. Use the marked cut points to trim the sheets with sharp scissors.
- Mount The Light Sheets – Peel off the protective layer from the adhesive backing and press the light sheet onto the surface, ensuring a secure bond. Take care to only press between the chips.
- Connect The Sheets – Each sheet comes with connection cables, enabling you to link multiple sheets together for larger or continuous lighting installations.
5. Turn the Power On – Once the light sheets are mounted and connected, turn on the power to test the system. Adjust the positioning of the sheets as needed, ensuring everything is securely in place and fully operational.
Where Can You Install Our Light Sheets?
Our light sheets are designed for flexible use across large areas, allowing for seamless illumination without the need for multiple LED strips. Their versatility makes them ideal for a range of applications:
Retail, Point Of Sale & Business Lighting
Ideal for showrooms, product displays, fitting rooms, and window displays, the LS24-CCT allows you to adjust light temperatures to enhance product visibility and create an inviting environment.
Architectural Lighting
Perfect for walls, ceilings, and furniture in offices, commercial buildings, and public spaces, seamlessly integrating into modern designs.
Signage & Displays
Provides even backlighting for signage, logos, and advertisements. The LS24 is ideal for static signs, while the LS24-CCT offers flexibility for dynamic displays.
Hospitality & Entertainment
Used in hotels, restaurants, and bars for accent lighting and adjusting ambience with tunable white options.
Home Applications
Great for use in kitchens behind marble countertops to create a backlit effect, as well as for under-cabinet lighting, home offices, and wardrobes.
FAQS
What Comes In The Pack?
Each pack includes 4 light sheets and the necessary cables for easy installation.
Can LED Light Sheets Be Customised?
Yes, our b420 and b840-CCT light sheets can be cut at 16.77mm intervals, allowing precise customize to fit various project needs.
With 420 to 840 LEDs per sheet, they offer flexibility for both small and large spaces. Additionally, the B840 CCT offers tunable white temperatures (from 2700K to 6500K), allowing you to adjust the colour to match your design requirements.
Can Our LED Light Sheets Be Dimmed?
Yes, our light sheets are dimmable, allowing you to adjust the brightness to suit different settings and moods.
Are LUMIWISE LEDs Light Sheets Easy To Install?
Installation is straightforward, thanks to the 3M adhesive backing and the flexible design, allowing the sheets to be mounted on various surfaces and even curved areas.
What Are The Power Requirements For LUMIWISE Light Sheets?
Our light sheets operate at 24V DC and use between (however many watts per sheet).
Can It Be Used Outside?
No, our LED light sheets are designed specifically for indoor use.
They lack the waterproofing and environmental protection needed for outdoor applications, which could affect performance and durability if exposed to moisture or outdoor elements.
