Uniform, No light spot, even without aluminum profile

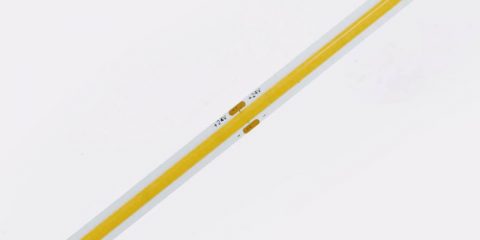

COB led strip lights are much more flexible than other flexible strips because of the small size of the diodes and the uniform weight distribution.

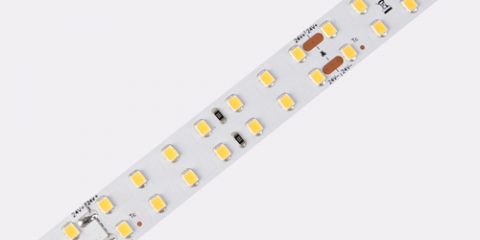

The traditional SMD light strip luminous angle is 120 degrees, while the COB led tape light luminous angle is 180 degrees. More stable, fewer problems
COB strip is the chip directly attached to the FPCB, does not come with gold wire. Traditional SMD LED strip, very many problems are caused by the gold wire inside the LED beads.

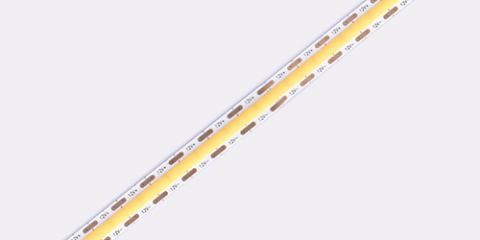

Flexi COBflex slim 4mm | |||
Product code | COB48024V10MM15W | COB48024V10MM10WXX | COB48024V10MM5WXX |
Power | 15W | 10W | 5W |
Driver | Constant Votage (CV) | ||
Voltage | 24v dc | ||
LED QTY | 480 chips/m | ||
LED voltage | / | ||
LED Current | / | / | / |
Dimmable | ON/OFF,PWM&DALI | ||
Color output | Static white | ||
Materials | LED chips and Copper PCB | ||

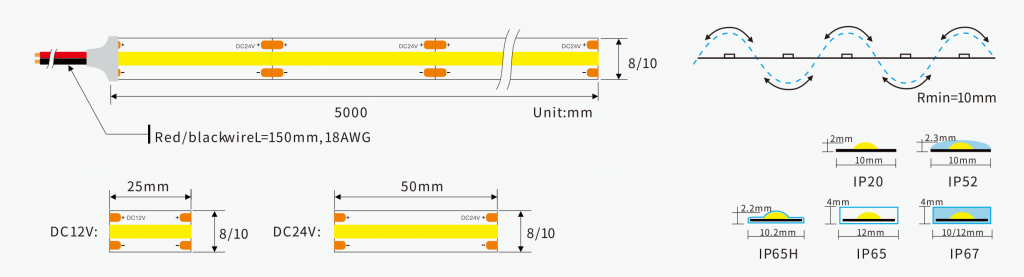

Size (PCB) | 10MM | ||
IP Protection | IP20 | ||
LED brand | San’an | ||

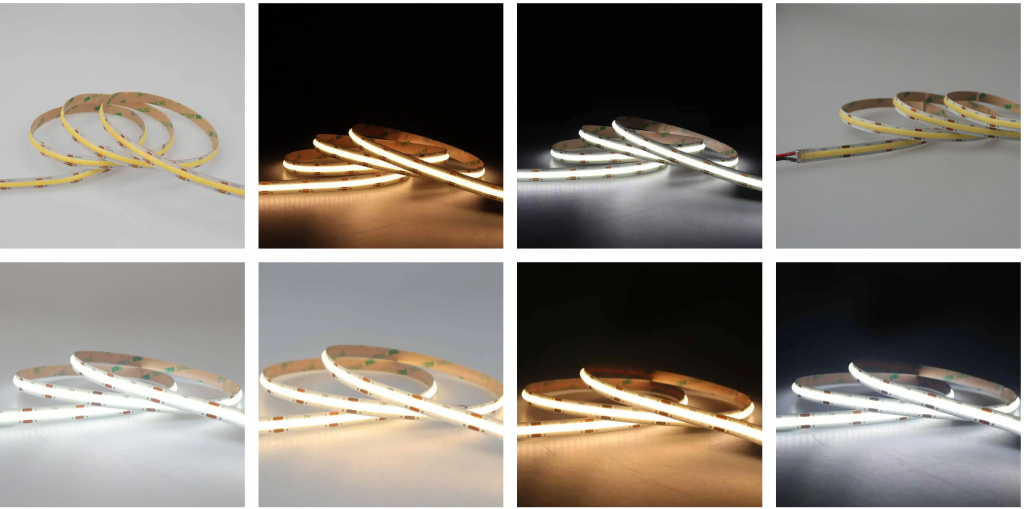

CCT | 2700K,3000K,3500K,4000K,5000K,6500K | ||
CRI | CRI80+, CRI90+ | ||
SDCM | <3 | ||
Cutting Unit | 25mm /50mm | ||
Beam angle | 120° | ||
Cutting interval | 50mm | ||
Lamp Efficiency | 90-110lm/W | ||
Protection | IP20 | ||
Max Running length | 5m | ||
Warranty | 3-5years |
